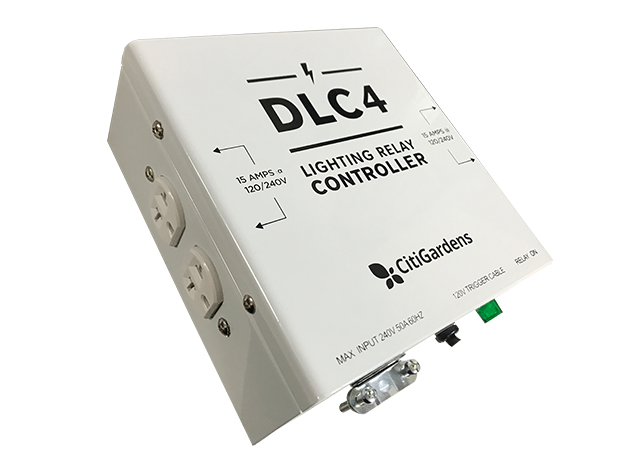

The DLC 4 is an efficient way to control a 4 HID light setup. This controller is designed to run a maximum of (4) 1000W ballasts using 120V or 240V power, with a maximum relay amperage of 30 amps. A 120V trigger cable which can be connected to a 120V timing device is included.
Please consult a certified electrician before installing or when using this controller if you are unfamiliar with electrical wiring.
Main Power Voltage | 120V or 240V |
Receptacle Type | Universal |
Maximum Lighting Wattage | 4000 Watts (1000W per outlet) |
Maximum Relay Amperage | 30 amps |
Operating Temperature Range | 32-110°F |
Operating Humidity Range | 0-99% rH (non-condensing) |
Maximum Relay Operations | 100,000@Full Load |
Metal Housing |
|
